Pop-A-Plug® System Ram Packages

Installs Pop-A-Plug® Tube Plugs Quickly, Safely and Easily

Installs Pop-A-Plug® Tube Plugs Quickly, Safely and Easily

  • Includes Hydraulic Pump, Pressure Gauge and High Pressure Hose

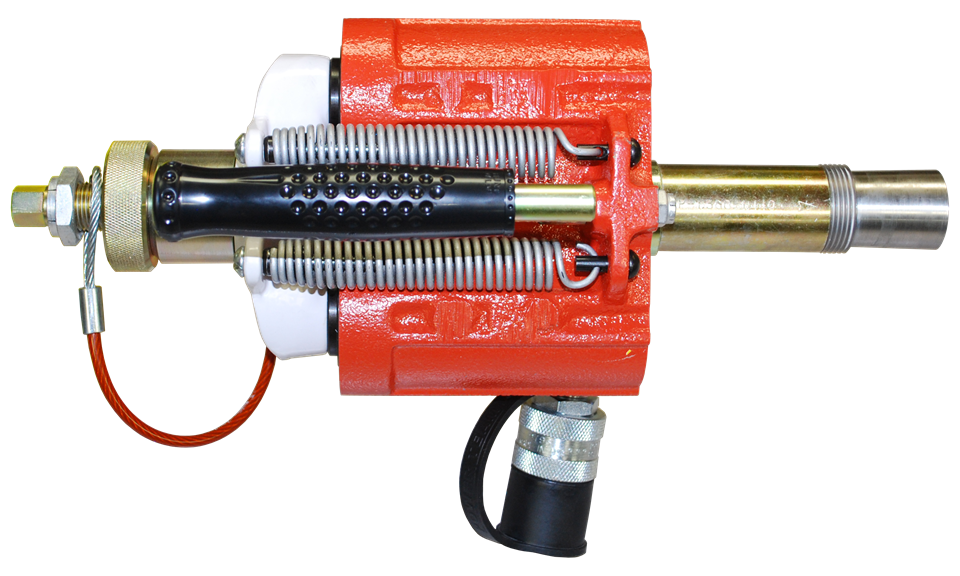

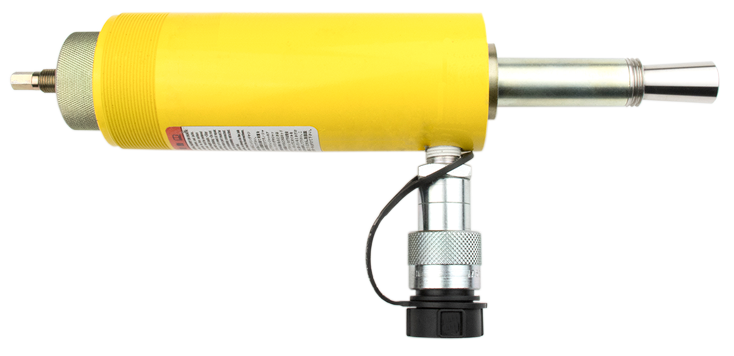

There's no better way to install EST's Pop-A-Plugs than with our Ram Installation Equipment. Our Small and Large Ram Packages are designed to hydraulically install plugs in seconds. In addition, they are compact, lightweight and easy to use.

Tight Space! No Problem!

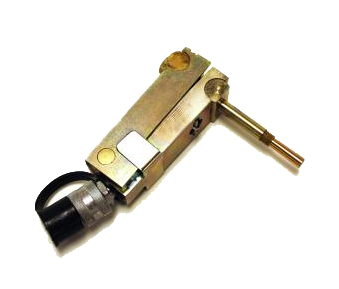

EST's Close Quarters Ram lets you install Pop-A-Plugs even when there's only minimal clearance around the tube end - in the outermost row of tubes in a closed head feedwater heater, for example, or in tubes adjacent to a pass partition or divider plate.

Features & Benefits

  • Compact, Air Driven Hydraulic Pump: Operates on an air supply of 40 to 125 psig (2.7-8.6 Bar). Normal air consumption is 9-20 CFM (0.25-0.57 m3/min) at 100 psi (6.8 Bar). The air inlet connection to the pump is 1/4" NPTF.
  • High Capacity: 10,000 lb capacity hydraulic ram.
  • Includes Hose: 10 feet of 10,000 psi hydraulic hose.
  • Dual Scale Gauge: A rugged glycerin-filled dual scale 10,000 psi (680 Bar) pressure gauge.
  • Comes Complete WithStorage Box: Includes a sturdy metal storage box.
